git

优秀文档

文件状态变迁图

flowchart LR subgraph WorkDirectory ut(Untracked) um(Unmodified)--编辑修改-->md(Modified) end subgraph Staged s(Staged/Index) end subgraph Repo r(Commit对象) end WorkDirectory --add--> Staged Staged --restore或checkout--> WorkDirectory Staged --commit--> Repo Repo --restore或reset或checkout--> Staged

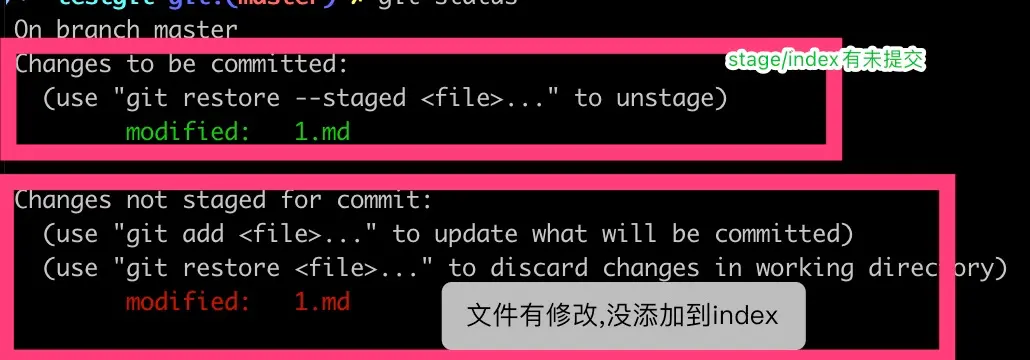

git_lint

sequenceDiagram actor ut as Untracked actor um as Unmodified actor m as Modified actor s as Staged/Index actor r as Repo opt 未跟踪新文件 ut->>s: add 跟踪 ut-->>um: 自动转为 r-->>s: 放弃跟踪 restore --staged或rm --cached um-->>ut: 放弃跟踪后自动转为 end opt 已跟踪 opt 已跟踪编辑 um->>m: 编辑 s-->>um: 放弃编辑 restore或checkout end opt 提交到stage/index m->>s: add r-->>s: 放弃add restore --staged或reset end r-->>um: 放弃add和编辑 restore --staged --worktree或checkout head end opt 提交repo s->>r: commit r-->>s: 放弃commit restore --source=HEAD~1 --staged或reset head~1 end r-->>um: 放弃commit和add和编辑 restore --source=HEAD~1 --staged --worktree或checkout head~1或reset --hard head~1

命令介绍

  • git rm, 删除WorkDictory,Staged/Index的文件

    • 命令快照
    git rm [--cached] <pathspec>...

    • 带上–cached,则只删除Staged/Index,否则WorkDictory也删除
  • restore,从指定源恢复

    • 命令快照
     git restore [<options>] [--source=<tree>] [--staged] [--worktree] [--] <pathspec>...

    • 没有带上–staged,则直接从Staged/Index恢复到WorkDictory
    • 带上–staged,则从repo(head或者source指定commit或tag)恢复到Staged/Index.如果同时要恢复WorkDictory,则带上–worktree
    • –source默认值为head
    • 命令是试验性的,行为可能会改变.THIS COMMAND IS EXPERIMENTAL. THE BEHAVIOR MAY CHANGE.
  • reset,设置head,Reset current HEAD to the specified state

    • 命令快照-格式1
     git reset [-q] [<tree-ish>] [--] <pathspec>

    • 从指定的tree-ish恢复到staged/index,tree-ish不指定就采用head

    • 命令快照-格式2

     git reset [<mode>] [<commit>]
             This form resets the current branch head to <commit> and possibly updates the index (resetting it to the tree of <commit>) and the working tree depending on <mode>. If
             <mode> is omitted, defaults to --mixed. The <mode> must be one of the following:

    • 把head指向tree-ish
    • mode不同值不同含义
      • –soft,仅改动head
      • –mixed(默认值),改动head并且staged/index恢复为指定tree-ish里面,workdictory不改
      • –herd,改动head并且staged/index,workdictory恢复为指定tree-ish里面
  • checkout,切换分支或恢复出指定文件

    • 命令快照-格式1
    git checkout [-f|--ours|--theirs|-m|--conflict=<style>] [<tree-ish>] [--] <pathspec>

    • 没有带上tree-ish,则直接从Staged/Index恢复到WorkDictory

    • 带上tree-ish,则从repo(tree-ish)恢复到Staged/Index和WorkDictory

    • tree-ish 通常是head,commit值或tag之类

    • 命令快照-格式2

    git checkout [-q] [-f] [-m] [[-b|-B|--orphan] <new_branch>]

    • 没有带上-b,则直接切换指定分支,分支必须存在

    • 带上-b,则创建新分支,并且立即切换过去

    • 命令快照-格式3

    #从远程仓库/分支,创建本地分支,分支名同远程分支一样,两者建立跟踪关系
    #切换到新分支,简化操作
    git checkout --track remoteRepo/repoBranch

  • revert返祖,产生新的提交commit来返回过去的特定提交

    • 命令快照
     git revert [--[no-]edit] [-n] [-m parent-number] [-s] [-S[<keyid>]] <commit>
     git rever -m 1 head

flowchart LR m1(commitXXXX) --commit--> m2(commitYYYY) m2 --commit--> m3(commitZZZZ) m3 --rever -m 1 head--> m4(commitNNNN,但内容和commitYYYY一样)
  • 标签

    #列出标签
    git tag
    #查看指定标签
    git show vxxx
    #打轻量标签
    git tag v1.0
    #打附注标签
    git tag -a v2.0 -m "附加信息"
    #把标签vxxx推送到远程
    git push origin vxxx

  • commit对象

    flowchart LR subgraph commitXXXX direction TB cx(CommitXXXX)--包含-->tx(Tree对象) tx--包含-->bxa(Blob对象A) tx--包含-->bxb(Blob对象b) tx--包含-->bxc(Blob对象c) end subgraph commitYYYY direction TB cy(commitYYYY)--包含-->ty(Tree对象) ty--包含-->by1(Blob对象1) ty--包含-->by2(Blob对象2) end subgraph commitZZZZ direction TB cz(commitZZZZ)--包含-->tz(Tree对象) tz--包含-->bzl(Blob对象l) tz--包含-->bzm(Blob对象m) tz--包含-->bzn(Blob对象n) tz--包含-->bzo(Blob对象o) end commitXXXX --父对象--> commitYYYY commitYYYY --父对象--> commitZZZZ

  • 分支

#列出分支
git branch
#查看分支详情
git branch -vv
#创建分支issue100
git branch issue100
#跳到分支issue100
git checkout issue100
#创建hotfix并且立即切过去
git checkout -b hotfix
#删除分支issue100
git branch -d issue100
#指定分支的跟踪远程分支
git branch --set-upstream-to=remote/branch branch
#基于远程分支创建新分支并设置跟踪关系
git checkout --trace -b feature origin/feature
#把hotfix分支合并到当前分支里
git merge hotfix
# 合并没有历史交并的分支
git merge gitee master --allow-unrelated-histories
#如果合并冲突,则编辑修改冲突文件,再提交
git commit -am "人工修改冲突"
#变基是改变-指定分支(不指出则采用当前分支)的起点,并且起点后的提交重播一次
#以hotfix分支为起点,本分支已有提交重播一次,达到合并目的
git rebase hotfix
#如果重播冲突,则编辑修改冲突文件,再提交
git commit -am "人工修改冲突"
#解决冲突后提交,再继续完成变基操作
git rebase --continue

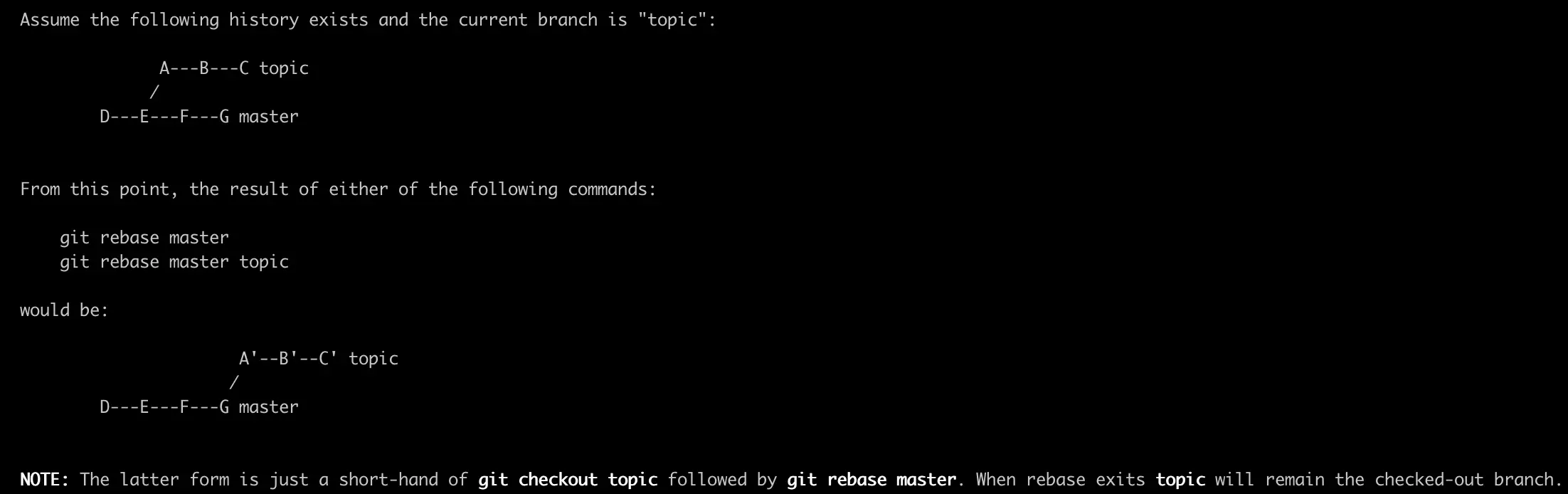

git_rebase

  • rebase变基原则

    • 只对尚未推送或分享给别人的本地修改执行变基操作清理历史.
    • 从不对已推送至别处的提交执行变基操作.
  • 合并提交

git commit -am "first"
# 编辑修改...
git commit -am "second"
# 编辑修改...
git commit -am "three"

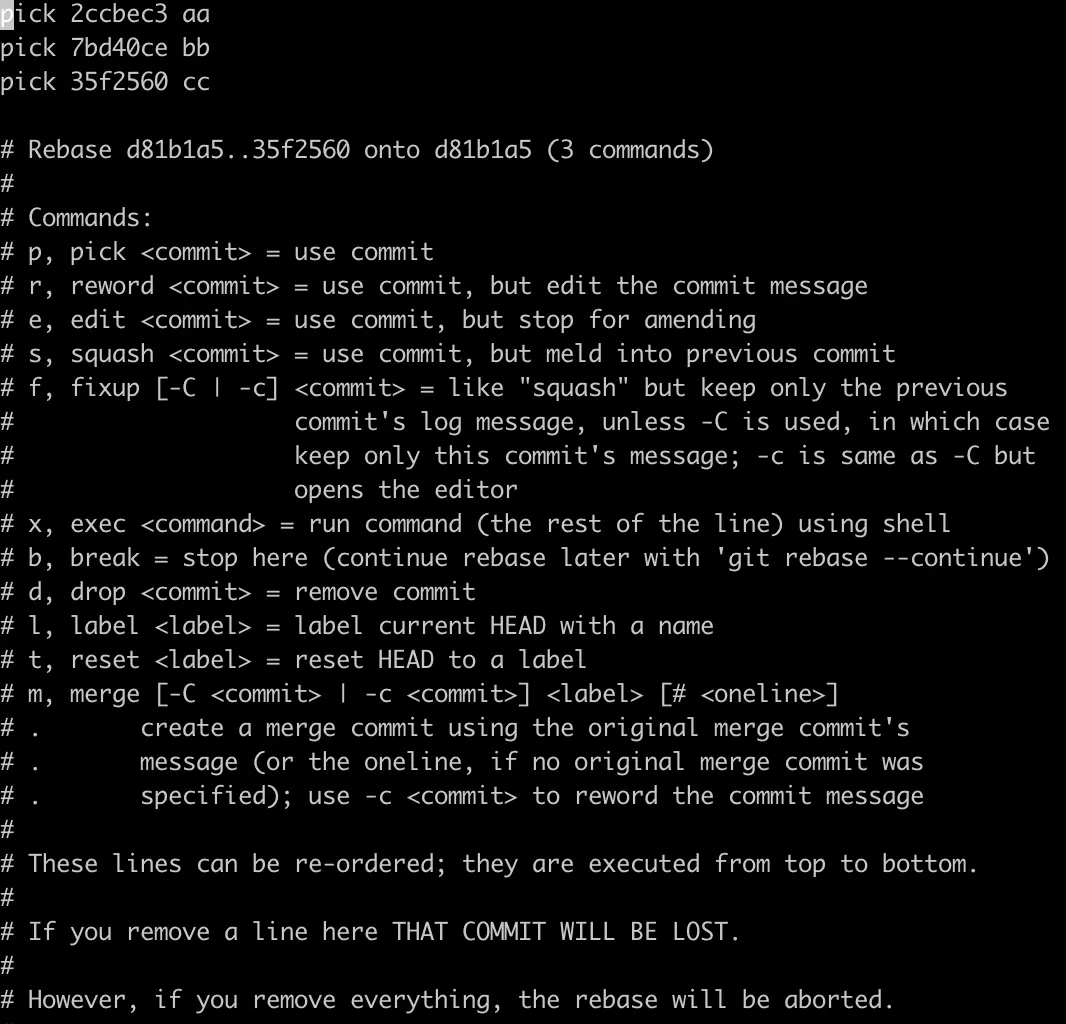

# 交互式合并最近三个提交,如下图所示
# 默认从上到下,从旧到新列出来,可以编辑顺序
# 合并时从上到下执行,第一个一般是pack(基础),其他的为s(合并到基础去,pack改为s)
# 退出保存后,会继续编辑合并信息.
git rebase -i head~3

git_rebase

git commit
git branch dev
git checkout dev
git commit
git commit
git checkout master
git commit
git commit
git commit
git merge dev
gitGraph: options { "nodeSpacing": 100, "nodeRadius": 10 } end commit branch dev checkout dev commit commit checkout master commit commit commit merge dev
  • 远程仓库
flowchart LR subgraph 本地仓库前 lm(master) ld(dev) end subgraph 远程仓库 rm(master) rd(dev) rh(hotfix) end subgraph 本地仓库后 am(master) ad(dev) arm(origin/master) ard(origin/dev) arh(origin/hotfix) end 本地仓库前 --remote add orgin--> 远程仓库 本地仓库前 --fetch origin--> 本地仓库后
#添加远程库
git remote add name url
# 如果远程库有意外提交,可以强行合并进来,再推上去
git pull origin master --allow-unrelated-histories
#拉取远程库内容
git fetch name
#查看远程分支日志
git log name/branch
#创建本地分支branch并且跟踪到远程分支
git checkout --track name/branch
#推送到远程
git push
#删除远程分支
git push name -d branch
#查看本地分支与远程分支设置
git branch -vv
  • 集中式工作流程
sequenceDiagram actor da as 开发者A actor r as 仓库 actor db as 开发者B da->>r: clone db->>r: clone da->>da: commit db->>db: commit da->>r: push db->>r: pull db->>r: push
  • pull-request工作流程,同一个仓库用不同分支替代仓库,类似流程
sequenceDiagram actor da as 开发者A actor dar as 开发者A仓库 actor r as 仓库 actor rw as 仓库维护者 actor db as 开发者B actor dbr as 开发者B仓库 opt 开发者A流程 da->>r: fork r-->>dar: 自动创建 da->>dar: clone da->>da: commit da-->>dar: push dar-->>r: pull requestA dar-->>rw: 通知 end opt 开发者B流程 db->>r: fork r-->>dbr: 自动创建 db->>dbr: clone db->>db: commit db-->>dbr: push dbr-->>r: pull requestB dbr-->>rw: 通知 end opt 仓库维护者流程 rw->>r: merge pull requestA rw->>r: merge pull requestB end
  • 储存栈
#把workdirectory已跟踪修改+staged/index储存到一个栈上,
git stash
#可以在任何一个干净状态恢复出来,不一定需要原来保存的分支里
#不带上--index,则只恢复workdirectory已跟踪修改,
#带上--index,则staged/index也一起恢复
git stash apply [--index]
#apply可以多次重复
#删除就用drop
git stash drop
  • 杂项
#配置本项目用户
git config user.name 'username'
git config user.email 'username@xx.com'

# 配置默认的分支名称
git config --global init.defaultBranch master

#修改最近提交的author
#amend纠正最近一次提交
#此次也会提交stage/index内容,如果stage/index没有修改,则直修改提交信息
git commit --amend --reset-author

# 查看最近3次提交文件变化情况
git log -3 --stat

#查看指定文件提交记录
git log -p filename
# 查看该文件的相关commit
git log -- filename

# 查看指定提交特定文件的变化
git show commit_id filename
# 查看指定提交的变化
git show commit_id

#比较两次提交之间指定目录的区别
git diff 26be34b 934d76fd flow/proto_file

# 有时候git status显示有变化,但是git diff没有,可能是文件换行符及文件权限属性变化了
git diff --cached filename

#当前指定提交commit值
rem 'git rev-parse --short HEAD'

#记录本项目git版本,获取当前git版本值
Cgithash=`git rev-parse --short HEAD`
#获取当前时间
Ctime=`date '+%Y-%m-%d_%H:%M:%S'`

# 强制退回指定commit
#fa2850...是commit的hash值
git reset --hard fa285014d635190e74cd40fc798ce26243766a09

#带用户名及密码的git clone
git clone http://uer:pwd@xxx.git


# 本地修改不提交到远程仓库
git update-index --skip-worktree filePath

# post-receive钩子
# git pull引入$GIT_DIR变量,因此需要取消变量
unset $(git rev-parse --local-env-vars);
git pull


# 查看特定提交在哪里分支
git branch --contains xxxx -all

# 创建一个空分支,没有任何父节点
git checkout --orphan newBranch
git rm -rf .
# 如何没有任何文件提交,看不到新建的分支
git commit -am "newBranch"

积累


  • 官网

  • Git gc一般情况不用手动,gc主要把无用的内部对象回收,一般都自动处理

  • Git钩子都被存储在 Git 目录下的 hooks 子目录中.

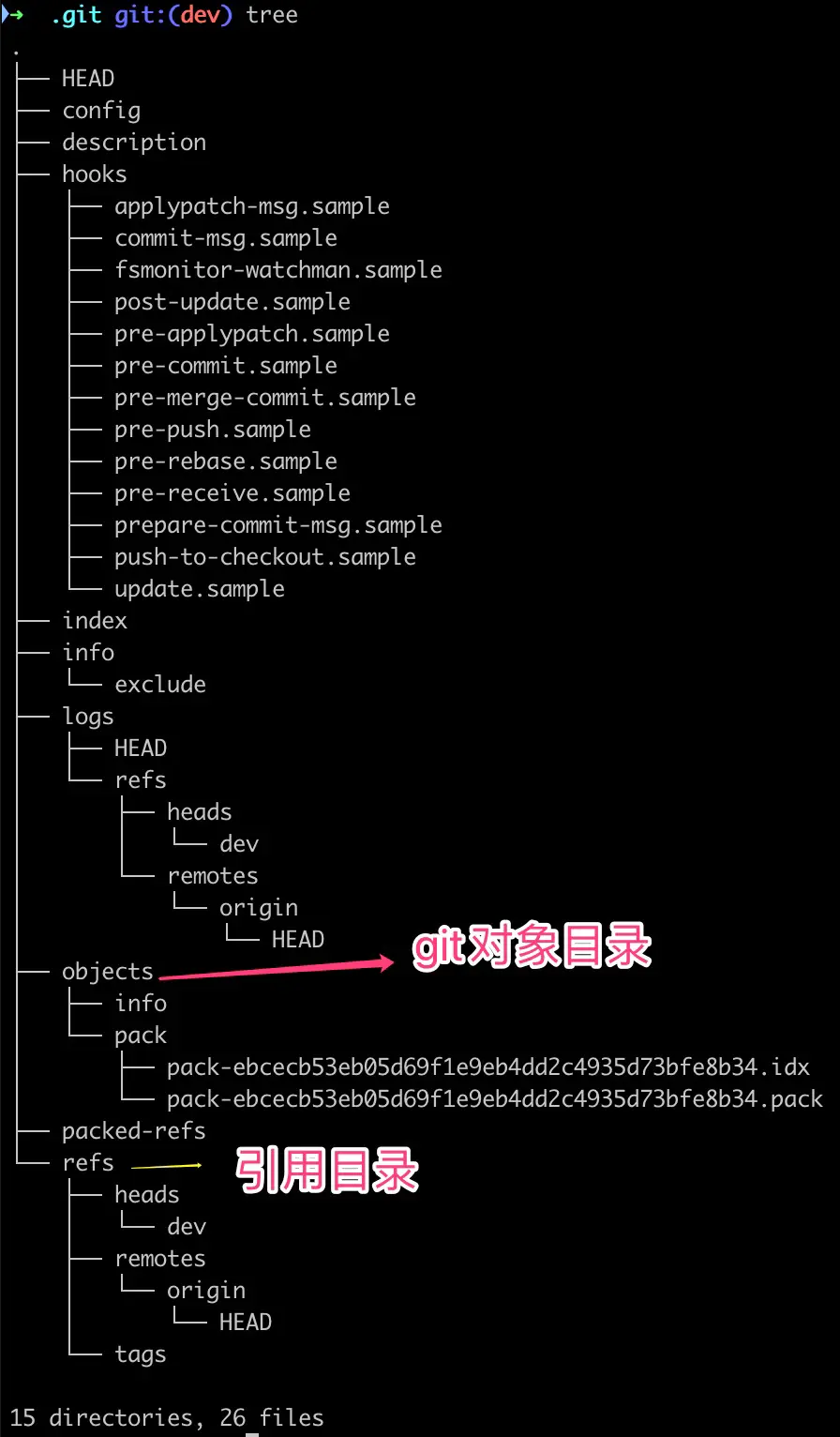

  • .git目录内容 git_dir

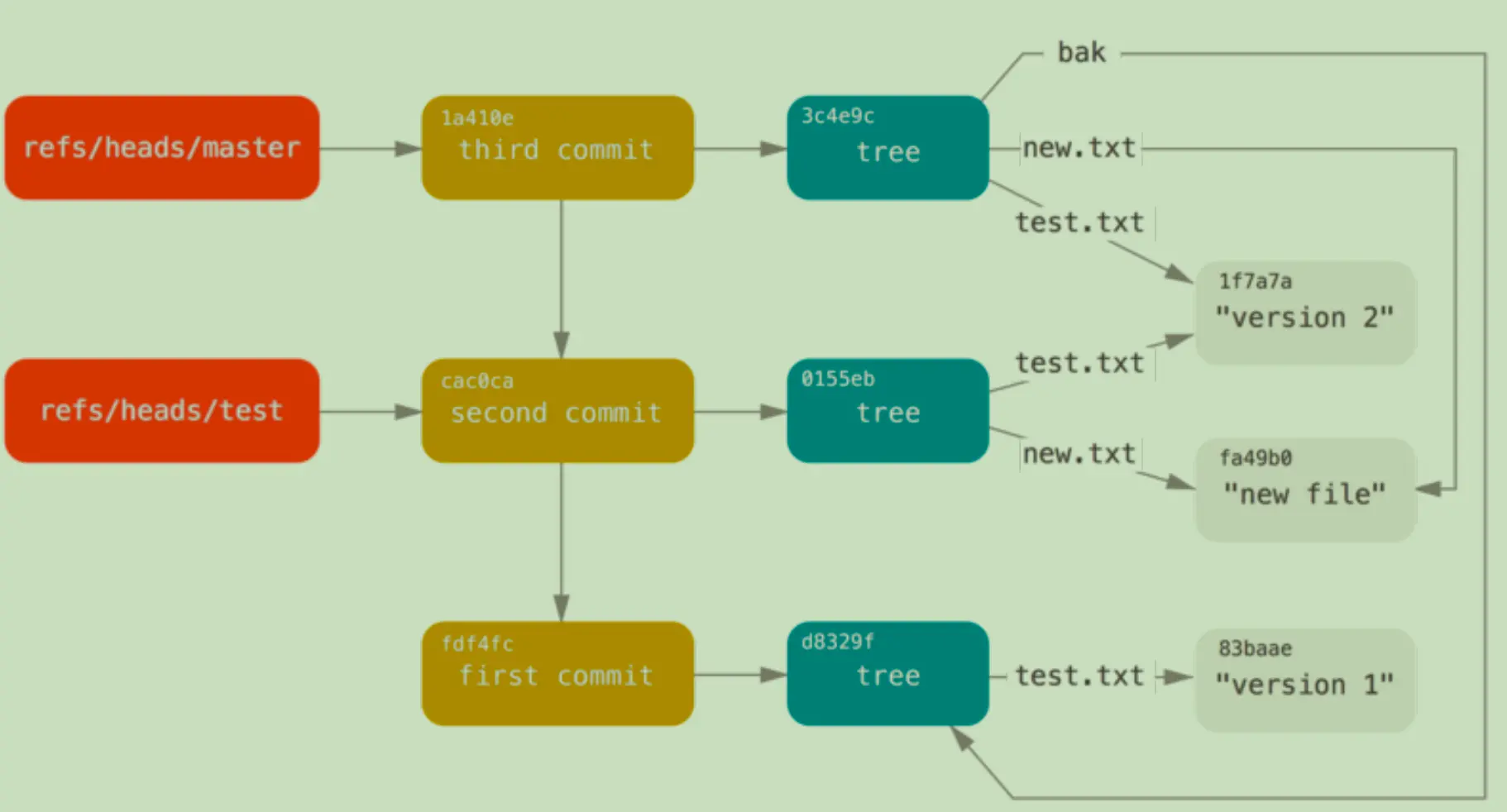

  • git引用 git_refs

  • 查看项目本地仓库,远程仓库,标签等

  tree .git/refs

git_tree_refs

  • Git 可以使用四种不同的协议来传输资料:

    • 本地协议(Local)
    #本机clone,尽量采用不带file://前缀,加快速度
    git clone /srv/git/project.git
    git clone file:///srv/git/project.git

    • HTTP 协议,现在git一般采用智能 HTTP 协议
    git clone https://example.com/gitproject.git

    • SSH(Secure Shell)协议
    git clone ssh://[user@]server/project.git
    git clone [user@]server:project.git

    • Git 协议
      • Git里的一个特殊的守护进程,它监听在一个特定的端口(9418)
      • 速度最快的
      • 缺乏授权机制
      • git://
  • 利用post-receive钩子自动更新

  #!/usr/bin/env bash

  # post-receive脚本代码
  cd ~
  target=xxx
  # 简单粗暴,删除旧目录
  if [ -d ${target} ]; then
      rm -rf ${target}
  fi
  # 重新建立,从git代码库目录
  git clone gogs-repositories/yyy/${target}.git
  # 杀死进程
  pkill ${target}
  cd ${target}
  # 后台运行进程
  nohup ./${target} >${target}.nohup 2>&1 &
  • push碰到HTTP 413

    • 问题表现
    Git push error: error: RPC failed; HTTP 413 curl 22 the requested URL returned error: 413

    • 解决办法
    # 增加最大http长度
    git config –global http.postBuffer 524288000

    location / {
      ...
      # 如果有nginx转发
      client_max_body_size 200M;
      ...
    }


多项目-一个项目(采用git管理)使用另一个项目(采用git管理)


  • Git Submodule

    • 添加子目录

      # 默认在目录下建立repo子目录,并且克隆仓库,并且创建.gitmodules
      git submodule add  https://xxx/repo.git
      # 提交到仓库
      git commit -am "submodule"

      # 如果子项目有更新,直接取更新
      git submodule update --remote
      # 然后更新父目录,子项目引用到更新后的
      git commit -am "更新submodule"

      #可以直接在子目录修改提交,和正常git操作一样

    • 其他人使用

      # 一次性克隆项目及子项目
      git clone --recursive https://xxx/repo.git

      # 或者先克隆项目
      git clone  https://xxx.git
      # 手动更新子项目
      git submodule init
      git submodule update --remote

      #可以直接在子目录修改提交,和正常git操作一样

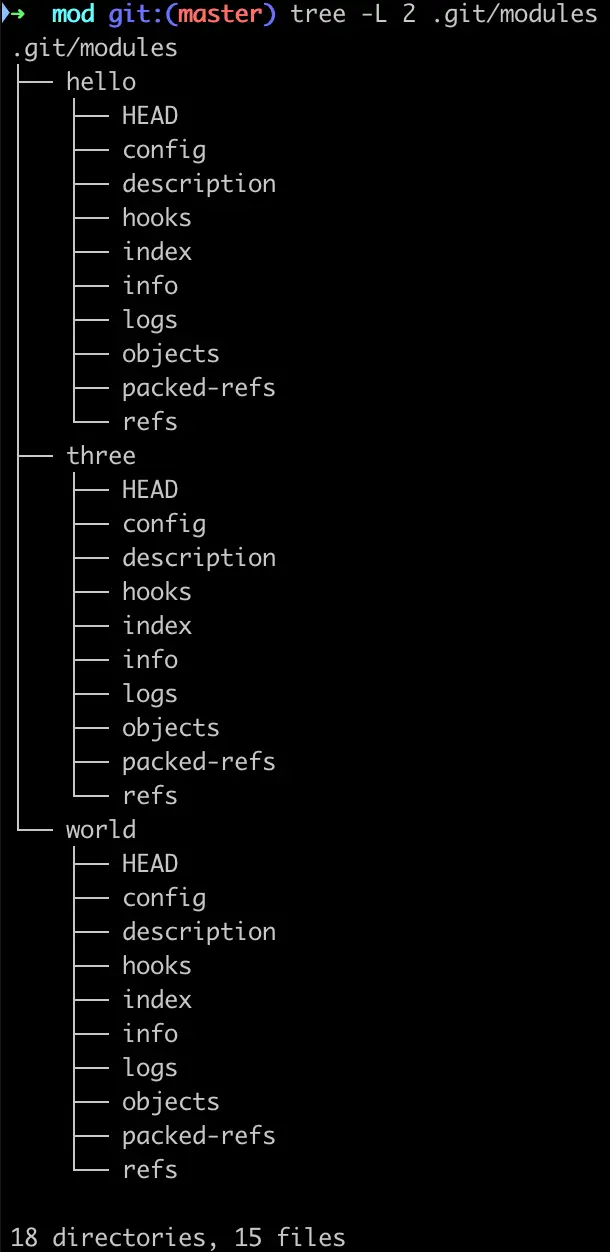

    • 子项目.git目录储存到父项目的.git/modules目录 git_submodules

    • 用引用方式,显式操作

  • Git Subtree

    • 添加子目录,建立与git项目的关联

      #-f在添加远程仓库之后,立即执行fetch
      git remote add -f <子仓库名> <子仓库地址>

      #–squash意思是把subtree的改动合并成一次commit,不用拉取子项目完整的历史记录。
      #–prefix之后的=等号也可以用空格。
      git subtree add --prefix=<子目录名> <子仓库名> <分支> --squash

    • 从远程仓库更新子目录

      git fetch <远程仓库名> <分支>
      git subtree pull --prefix=<子目录名> <远程分支> <分支> --squash

    • 从子目录push到远程仓库(确认你有写权限)

      git subtree push --prefix=<子目录名> <远程分支名> 分支

    • 用复制方式,隐式操作

  • GitSlave

清除大文件

  • 采用工具

  • 清理仓库大文件需要修改仓库的提交历史,git-filter-repo 是 Git 官方社区推荐的修改仓库提交历史的工具,本文介绍使用 git-filter-repo 来清理仓库大文件的方法。 看他

      pip3 install git-filter-repo

  • 手动执行


# 完全清除git中大文件提交
# 查看大文件
# 使用verify-pack命令查看, pack包里面的最大的10个文件对应的hash值
# 根据rev-list命令来查看, 最大的文件的文件名是什么
git rev-list --objects --all | grep "$(git verify-pack -v .git/objects/pack/*.idx | sort -k 3 -n | tail -10 | awk '{print$1}')"

# 删除大文件
git filter-branch --force --index-filter "git rm -rf --cached --ignore-unmatch linux_x86_64/zinc_upx" --prune-empty --tag-name-filter cat -- --all

# 回收空间,清理本地仓库不可达对象;
git for-each-ref --format='delete %(refname)' refs/original | git update-ref --stdin
rm -rf .git/refs/original/
rm -rf .git/logs/
git reflog expire --expire=now --all
git gc --prune=now
git gc --aggressive --prune=now

# 强制推到远程
git push origin --force --all
# git push origin –-force --tag
git remote prune origin

# !!清理完之后,每个人一定要删掉之前拉取的项目, 重新从git上拉项目。不要使用之前的项目了!否则会不降反升。

清除未跟踪文件

# 清除文件
git clean -f
# 连目录也一起清除文件
git clean -fd
